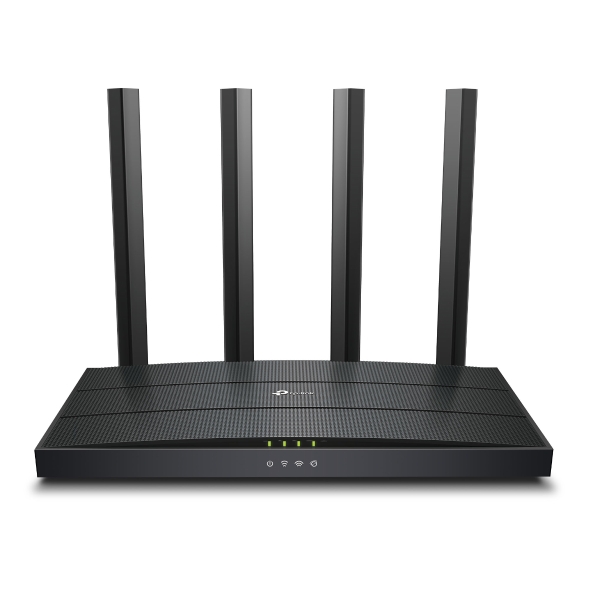

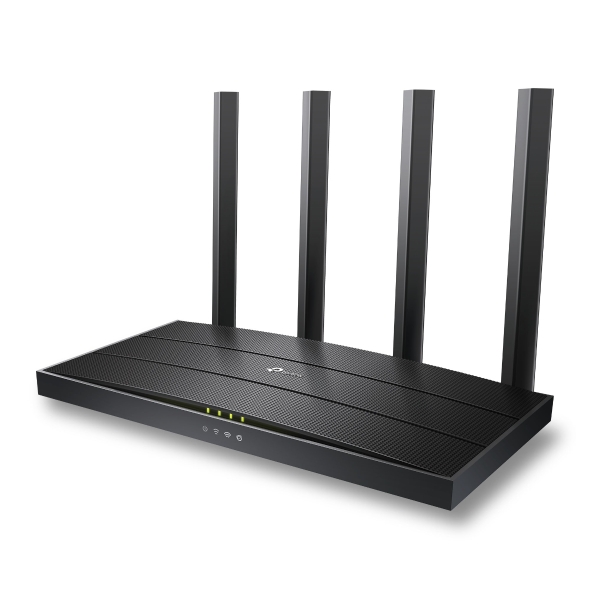

TP-Link Router F (FTTH* | FTTB | Ethernet) Wi-Fi 6 AX1500 - Archer AX12

Archer AX12

Router F (FTTH* | FTTB | Ethernet), Wi-Fi 6 AX1500


• Tecnologie Wi-Fi 6 - Archer AX12  è dotato delle più recenti tecnologie Wi-Fi 6 per una rete più veloce e in grado di supportare numerosi dispositivi connessi.
• Wi-Fi AX1500 - Raggiungi velocità Wi-Fi combinate fino a 1.5 Gbps (1201 Mbps sulla banda 5GHz + 300Mbps sulla banda 2.4GHz)15
• Connetti più dispositivi - Minore latenza grazie a tecnologie come OFDMA e MU-MIMO, che consentono più trasferimenti dati simultanei ottimizzando l'utilizzo della banda disponibile. 24
• Copertura ottimizzata - Crea una copertura Wi-Fi forte e stabile grazie alle 4 antenne esterne dotate di tecnologia beamforming.
• Ottimizzazione dei consumi - La tecnologia Target Wake Time consente ai dispositivi connessi di ridurre i consumi energetici, aumentando la durata di eventuali batterie inserite.3
• Configurazione semplice - Rendi operativo il tuo router in pochi minuti grazie alla potente Tether App.
• Massima compatibilità - Archer AX12 è compatibile con client dotati di standard Wi-Fi precedenti.




WIRELESS Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n) WiFi Range 2-3 Bedroom Houses 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity High Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth Working Modes Router Mode

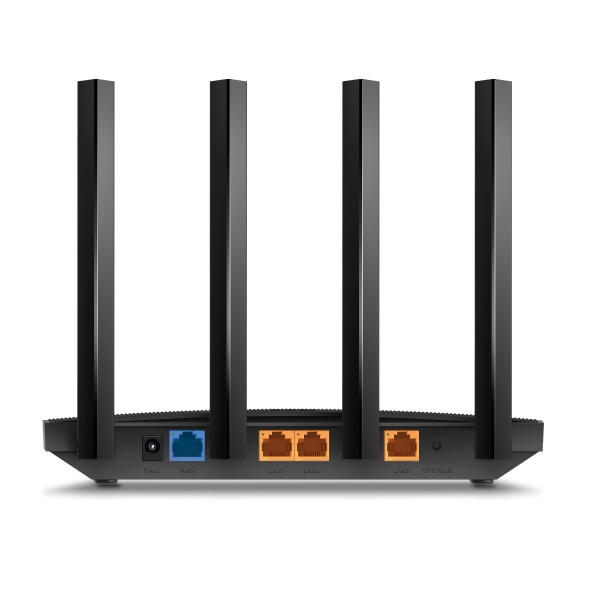

Access Point Mode HARDWARE Ethernet Ports 1× Gigabit WAN Port
3× Gigabit LAN Ports Buttons WPS/Reset Button Power 12 V ⎓ 1 A SICUREZZA WiFi Encryption WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network VPN Server OpenVPN
PPTP SOFTWARE Protocols IPv4
IPv6 Parental Controls URL Filtering
Time Controls WAN Types Dynamic IP
Static IP
PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN DHCP Address Reservation
DHCP Client List
Server DDNS TP-Link
NO-IP
DynDNS Management Tether App
Webpage
Check Web Emulator> OTHER System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75 PHYSICAL Dimensions (W×D×H) 8.5 × 4.6 ×1.3 in
(215 × 117 × 32 mm) Package Contents Wireless Router Archer AX12
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
